Autel MX-Sensor Autel Sensors Tyre Analysis Tool 315MHz 433MHz work with TPMS Autel PAD
Features

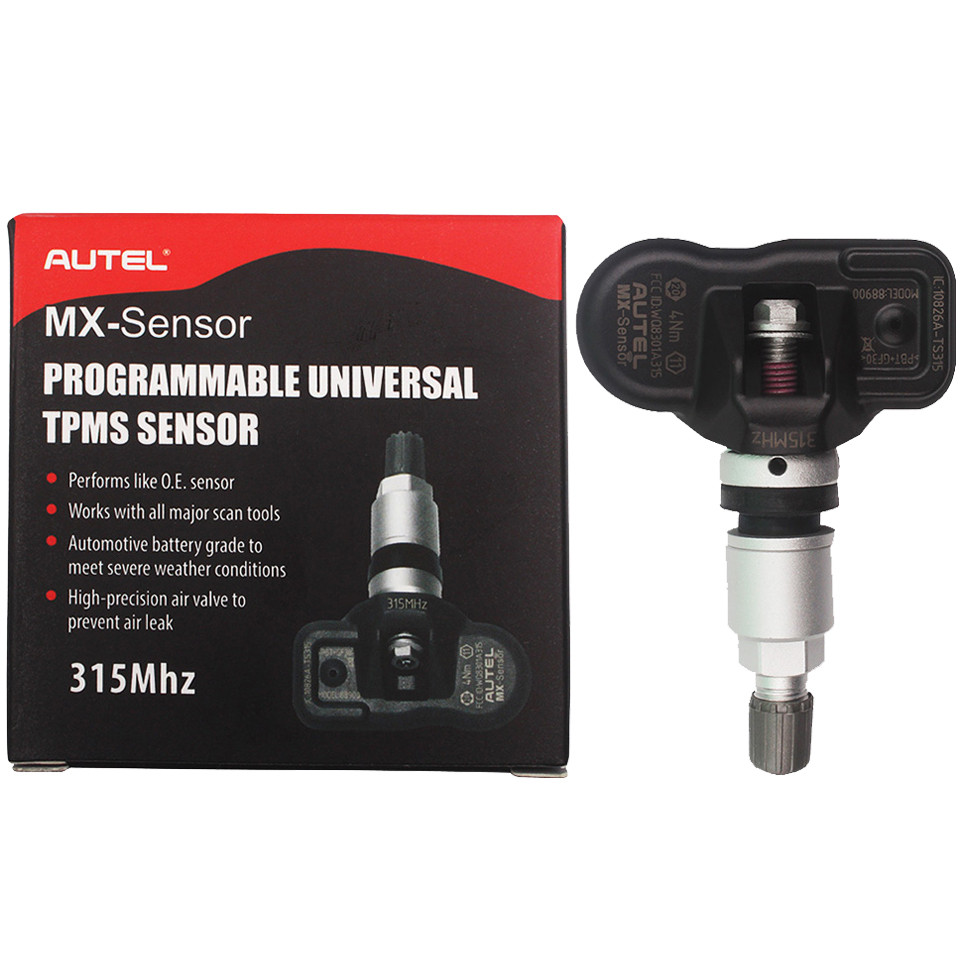

Autel MX-Sensor Autel Sensors Tyre Analysis Tool 315MHz 433MHz work with TPMS Autel PAD
Autel MX-Sensor have two models, one is 433MHz, the other is 315MHz, both work with TPMS PAD. So this item include a 315MHz sensor, a 433MHz and a PAD.
Feature:
Autel MX-Sensor 315MHz/433MHZ is a universal tyre diagnostic tool, support the latest model vehicle coverage because of the TPMS sensors quickly updating
during installation with an Autel wireless programming tool. Work together with 433MHz sensor cover 98% of all OE sensors on the market and are ID clone-able with no sensor re-learn required.
Specification:
Battery Life: ≥5 years
Operating Temperature: -40°C to +125°C
Storage Temperature: -40°C to +150°C
Operating Humidity: 90%
Operating Frequency: 433 MHz
Pressure Monitoring Range: 100 to 900 kPa
Pressure Reading Accuracy: ±10 kPa
Temperature Reading Range: -40°C to +125°C
Temperature Reading Accuracy: ±5°C
G Sensor Reading Accuracy: ±15%
Transmission Power: 5-8 dBm
Battery: 3.0 V
Dimensions (W x H x D) 55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor)
Weight (Without Valve) 18.5 g (Clamp-in Sensor)

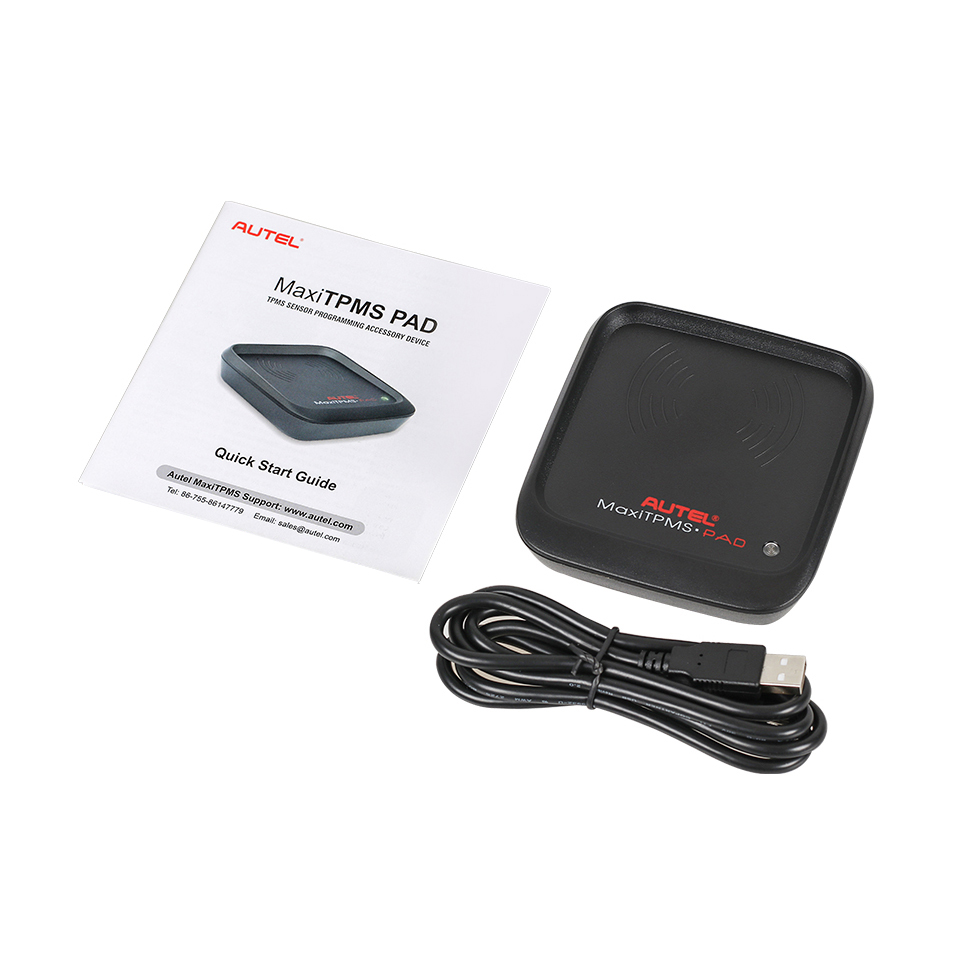

MaxiTPMS Programming Accessory Device Autel PAD TPMS Tester Tire Scanner
Introduction
The MaxiTPMS programming accessory device (PAD) frees up your TPMS activation tools for important projects.
It test and clone the four universal Autel MX-Sensor types quickly.
Feature
1. Easy-to-use PC software
2. Self contained PC operation
3. Make/model/year selection allows for correct sensor replacement
4. Direct reading from sensor for quick programming
5. No need for vehicle relearns
6. Ideal for mechanically broken sensors
7. Can automatically create ID numbers compatible with the vehicle
8. Runs from PC USB power, no batteries required
How to program?
1. Load the software on the PC.
2. Connect the PAD to the PC.
3. Program MX-Sensor.
This pad work with MX-sensor 433MHz and 315MHz , make analysis work with TPMS PAD TS401 TS601 100% clone-able and 98% coverage.
Categories:TMPS Tester
